How we made a Programmable Light up Helmet out of LED boards

How we made a Programmable Light up Helmet out of LED boards – by ETEREshop

Ever wanted to stand out in a crowd, becoming an unforgettable spectacle? With a custom-made LED helmet, you’ll be turning heads in no time. Used by DJs, performance artists, event agencies, music festival enthusiasts, and anyone craving a unique style, these helmets are your ticket to an unforgettable presence. Buckle up as we guide you on a step-by-step journey on creating your very own LED helmet, leveraging skills in design, 3D printing, soldering, and programming.

Contents

The Challenge Begins: A Client's Request

Our journey started with a specific task – creating a bespoke LED helmet. This was someone with a vision. They knew what they wanted, right down to their exact head size. We assessed their desires, agreed on the helmet’s unique features, and embarked on our mission to bring their vision to life.

led helmet for party
Programmable LED helmet, customer's idea
customer sketch of led helmet
The idea of an LED helmet from a client

Sketch Creation

We kicked off with a sketch, using the power of CLO and Fusion 360. The client chose a helmet based on a black foundation with white headphones in the shape of a dodecahedron.

DIY programmable LED helmet, sketch
1 Sketch of an LED helmet with a smooth shape of the front screen
DIY led dj helmet
2 a sketch of a helmet for a client in the form of a dodecahedron

The client chose the second option and we did a detailed study of the sketch in the Fusion 360 program.

Detailed 3D sketch of an LED helmet
Detailed 3D sketch of an LED helmet
3D sketch of the helmet on the side
3D sketch of the helmet on the side
LED boards on a programmable helmet, sketch
LED boards on a programmable helmet, sketch
Helmet design in dark lighting to show how the LEDs on the headphones will work
Helmet design in dark lighting to show how the LEDs on the headphones will work

Crafting Hexagonal Headphones

The headphones were a particular challenge. Our client desired a hexagonal shape, requiring a delicate balance between form and function. We designed a separate slot for the wire and adjusted the thickness of the headphones to comfortably house two 144 LED strips.

We change the thickness of the headphones to insert 2 LED strips into them 144
We change the thickness of the headphones to insert 2 LED strips into them 144

Producing the Programmable LED Helmet

Selection of materials

Printed circuit boards were our best choice to save production time. They allowed a high density of LEDs, giving us the power to enhance the brilliance and contrast of our light effects. While LED strips seemed tempting, we realized that it would be a challenge to achieve the desired dodecahedron shape. Circuit boards, however, opened a world of opportunities to create dazzling light effects, logos, text, and animation. They also allowed us to synchronize with music and LED costumes.

led boards
For a programmable helmet, we will use LED boards

Engineering helmet

After creating the prototype, we started production. When they made a trial product, they saw that cracks appeared. To solve this problem, we removed the chamfer with sandpaper from the reverse side. We have developed more practical corners.

gaps at the junction
Problem detected: gaps at the joint

We printed corners on a 3d printer to fasten three hexagons together. With the help of these corners, we assemble a frame of hexagons.

Corners for figures
Printed corners for helmet frame

Assembling the helmet frame

helmet frame
The frame of the future helmet
the back of the helmet
Plexiglass was bolted to the frame on the back side
EVA material was glued to the scratching parts inside the helmet

When the frame was ready, it was time to check the boards. Then they attached the LED plates from the front side, connected the wires. And also made a hat for the head made of EVA material inside the helmet so that it was comfortable to wear.

checking LED boards
We check the operation of LED boards
LED boards on the helmet
Attached LED boards to the helmet frame
helmet inside
Attached EVA material hat inside the helmet for convenient and comfortable use of the helmet

Production of headphones

The main details of the headphones were printed on a 3D printer.

3d printing of helmet parts
Printing headphones on a 3D printer

After printing, the hexagonal headphones were primed and glued.

glued headphones to the LED helmet
Glued headphones to the LED helmet
LED helmet with headphones, side view
Glued headphones to the LED helmet

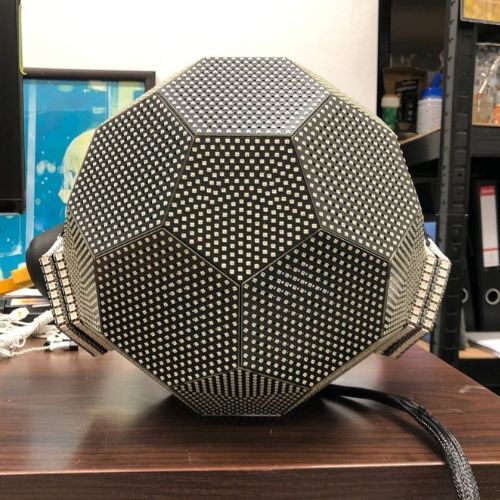

LED helmet with headphones, front view
Programmable LED with headphones, front view

Creating lighting effects for the light up helmet

Once the helmet was complete, we embarked on the intricate process of mapping the LEDs using the sophisticated Madrix software. We meticulously crafted bespoke light effects as per our client’s requests, including distinct logos, captivating animations, and custom text. Our in-house software, a product of our expert development, facilitated this by recording these effects into a file. This file was then seamlessly transferred onto the controller’s card. Following the transfer, we carried out a rigorous check to ensure each effect performed as desired, maintaining our commitment to quality and precision.

Ready-made LED light up helmet

Programmable LED helmet
Programmable LED helmet

At long last, our LED helmet was ready to light up the night! Weighing just 2 kg, the helmet is comfortable for extended wear. It uses 24 pieces of 18650 batteries, giving it an operating time of 1.5 hours or more. The helmet’s color? As cool as it gets – black!

Now, imagine yourself in a crowd, your customized LED helmet lighting up to the beat, catching everyone’s attention. This could be you. If you’re interested in crafting your own LED helmet or any other illuminated masterpiece, don’t hesitate to contact ETERESHOP email: sales@etereshop.com. Our team of designers, project managers, and engineers are ready to help bring your vision to life, no matter how complex. Let’s create something unforgettable together!
